Ford F-250 | Engine & Transmission Skid Plate | 2020-2025 | 6.7L Diesel

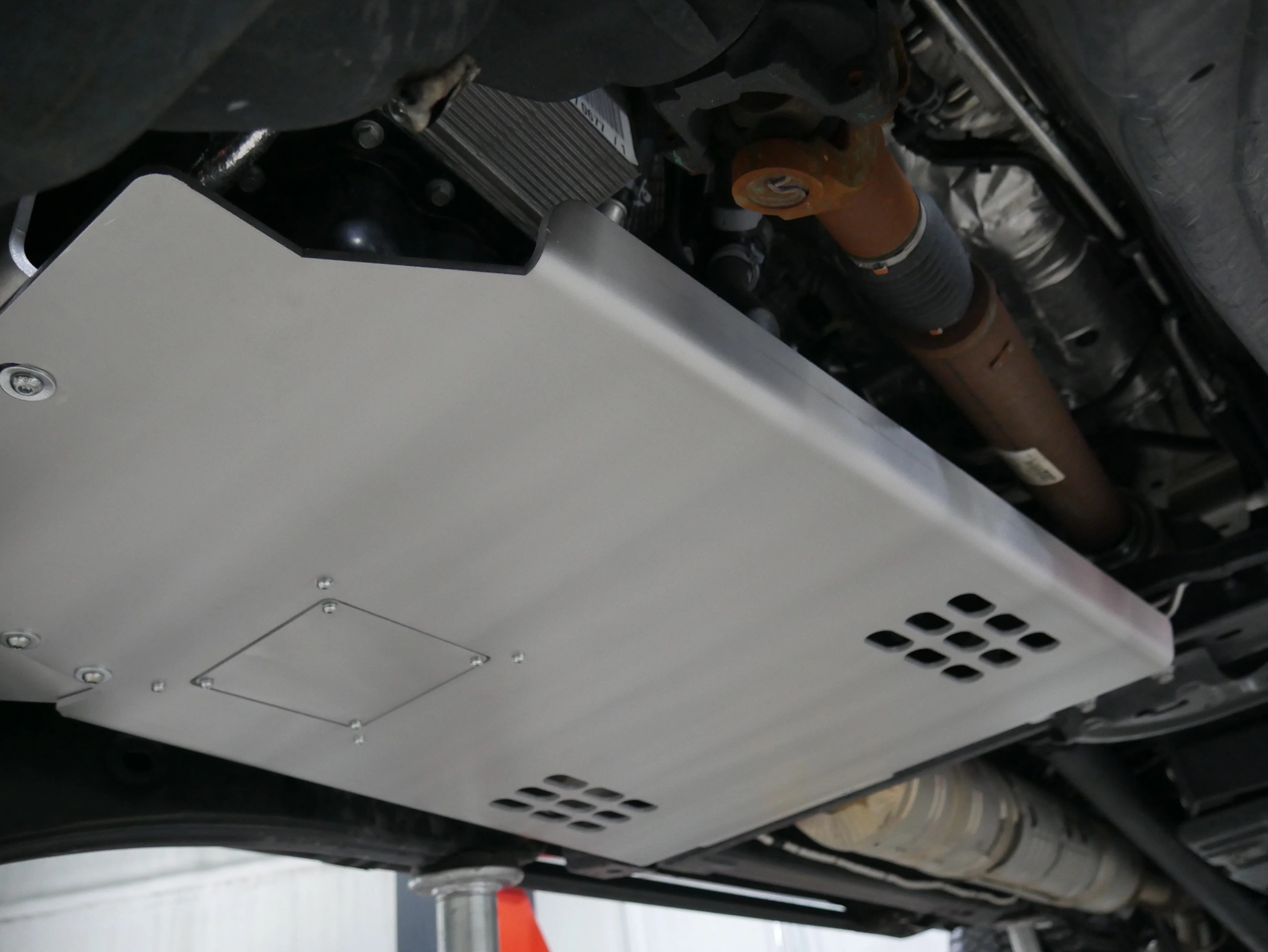

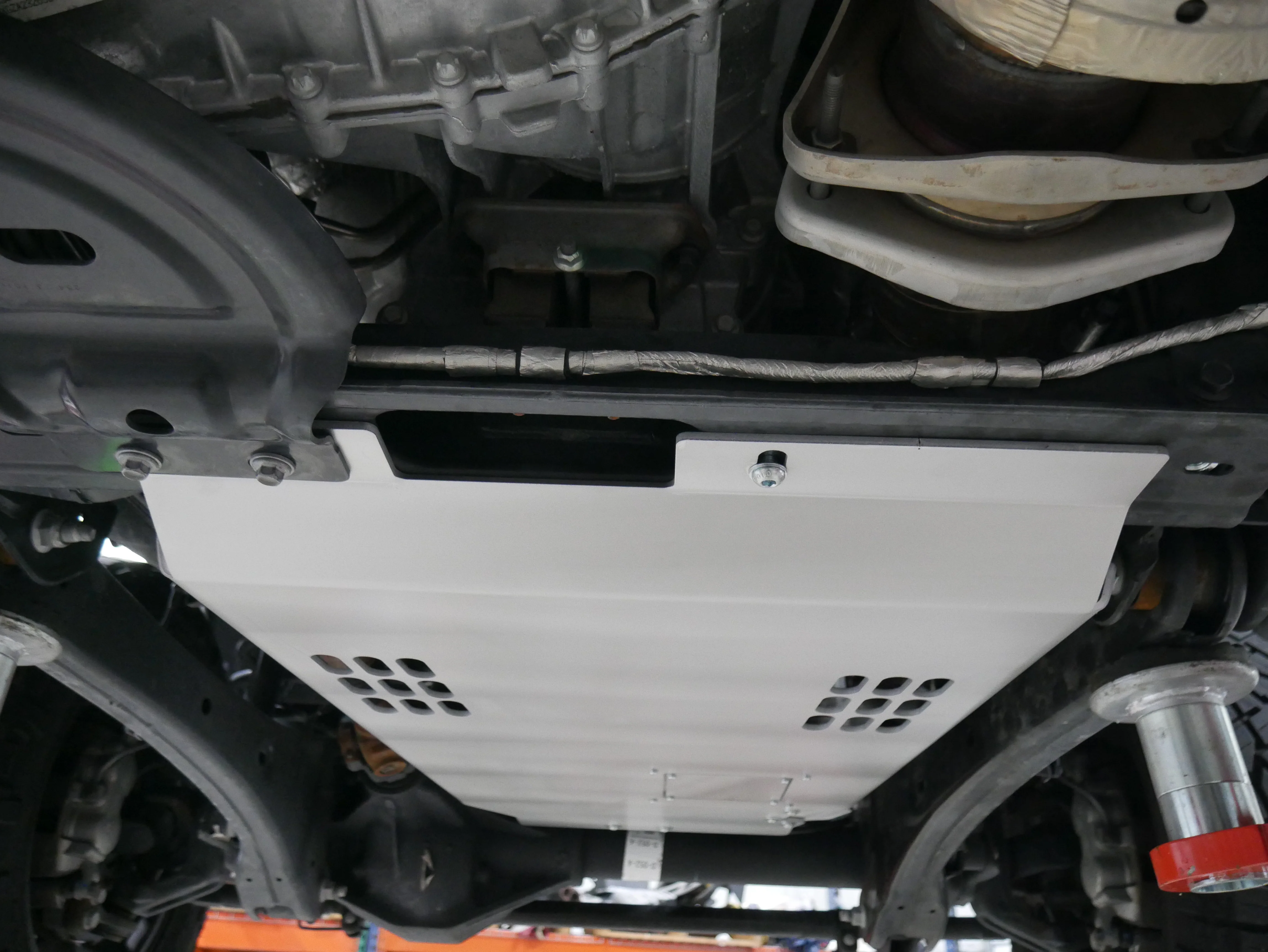

An engine and transmission skid plate for your 2020-2025 Ford F-250/F-350 with the 6.7L diesel engine. Crafted out of 1/4" 5052 aluminum making it an ideal cat theft deterrent and an off-road skid plate. It's an all-in-one design concept! This design boasts a full length shield that runs from crossmember to crossmember with added attachments for additional catalytic converter protection.
Fitment
- This skid plate is designed to fit the 2020-2024 F-250/F-350 with the 6.7L diesel engine with a 4x4 drive train
- Protects oil pan, transmission pan, and catalytic converter
- Please note: The 2020-2022 version will come with an additional "wing" that is mounted to the vertical flange on the driver side for additional coverage. The 2023-2024 model will not include this wing as there is not much of an open space between the exhaust and the radius arm.

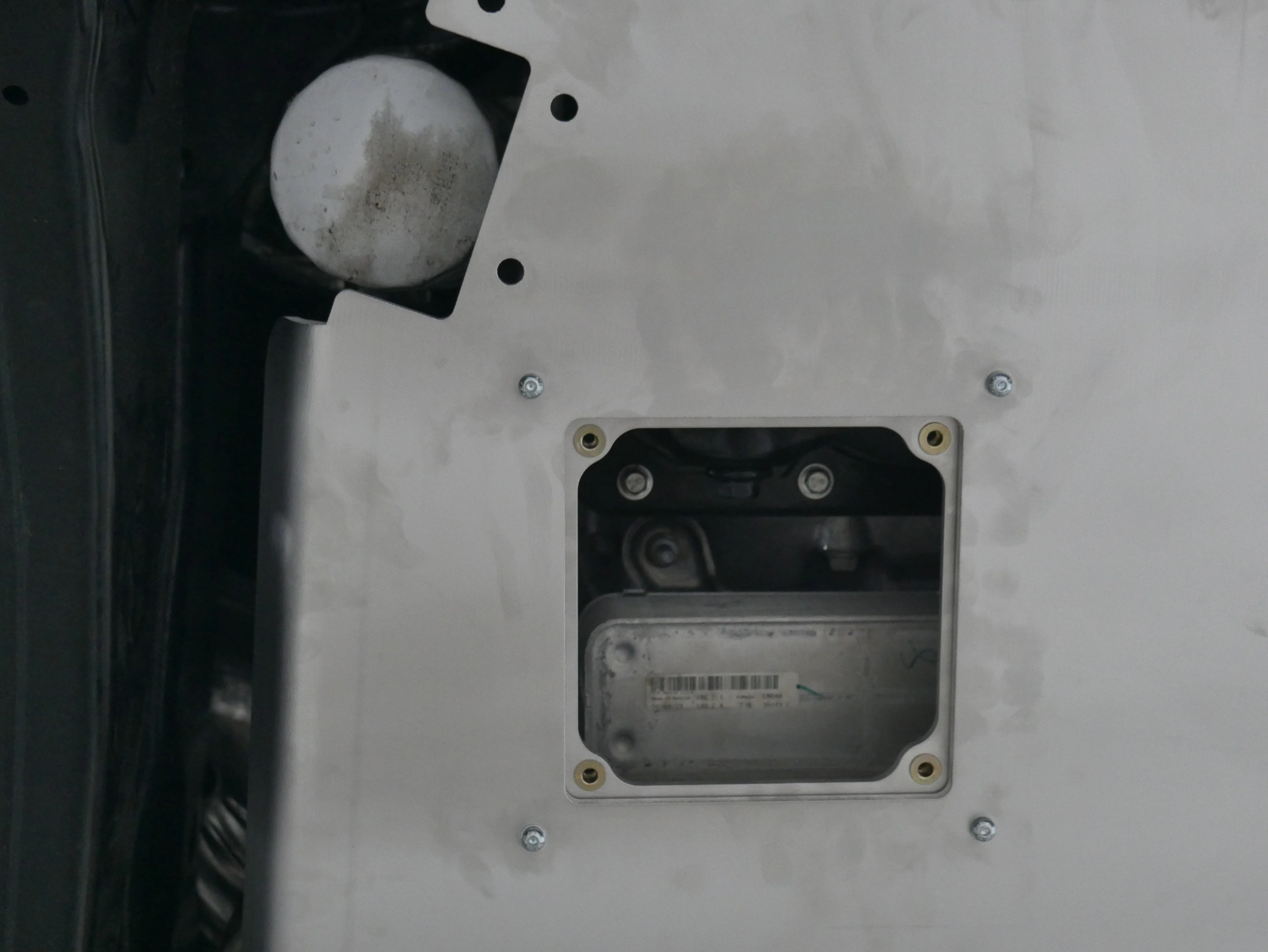

- Access to oil filter and drain plug! We do recommend a Fumoto valve, or similar, to ease oil changes with the shield installed
- Mounts into pre-existing holes. No drilling required.
- Compatible with OEM transfer case skid
- *If factory transfer case skid is not present, OEM transfer case mounting hardware will need to be purchased
- Not compatible with lift kits that require subframe modifications (usually lifts greater than 3 inches)
- Fitment confirmed on stock 4x4 vehicles
Included with purchase
- Engine/Transmission skid plate
- Zinc coated button head Allen head hardware
Material
- CNC Laser Cut out of 1/4" 5052 Aluminum - Will not rust!
- Ships as bare metal
- All plates ship uncoated as bare metal, some cosmetic blemishes may be present on material upon arrival. Displays in pictures have been polished and finished.
Installation
- This skid plate does require some mechanical skill to install, as some of the bolts are in tight, and hard-to-reach areas
- Direct bolt-on, no drilling required
- 2020-2022 F-250 Engine & Transmission Skid Plate Install Guide
- 2023-2024 F-250 Engine & Transmission Skid Plate Install Guide
Dimensions
- Approximately 38 lbs
Shipping, returns, warranty
- Click here for our policies page
- Shipping in 2-3 days
